$0.56 USD

PRODUCT´S FEATURES
  • New product
  • VAT included

1200 in stock

SKU: ELECT-JST-CVL-000 Categories: , Tag:

Description

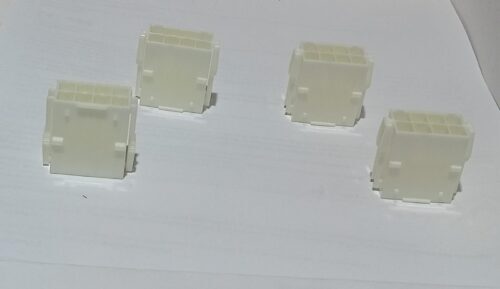

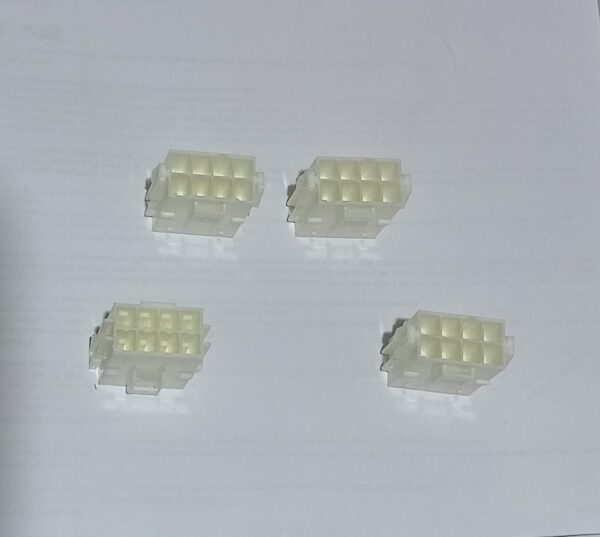

JST: VLR-08V VL Male connector housing, 6.2mm pitch, 8 way, 2 row

This rectangular connector from JST is designed for wire-to-wire and wire-to-board applications. Here’s additional information:

  • Number of Positions: The VLR-08V has 8 positions, allowing you to connect up to 8 wires or pins.
  • Pitch: The spacing between contacts is 0.244″ (6.20 mm), making it easy for connection and assembly.
  • Insulation Material: The housing is made of polyamide (PA66) and nylon 6/6, providing good strength and durability.
  • Operating Temperature: It can operate in a temperature range of -25°C to 90°C, making it suitable for various environmental conditions.
  • Contact Termination: It uses crimp terminals for a secure and reliable connection.
  • Mounting Type: The VLR-08V is free-hanging (in-line), allowing flexible installation.



Download JST VLR-08V PDF

Download JST VLR-08V PDF

Marketing form contact

Contact us if you need further information

Caribbean and Asian Pacific:
[email protected] (Ngoc Diu Nguyen)
Mexico and Latin America:
[email protected] (Eng. Rubén Arroyo Azuara)

Additional information

Weight 0.06 kg
Dimensions 3.5 × 3 × 1.5 cm
